Machinery use

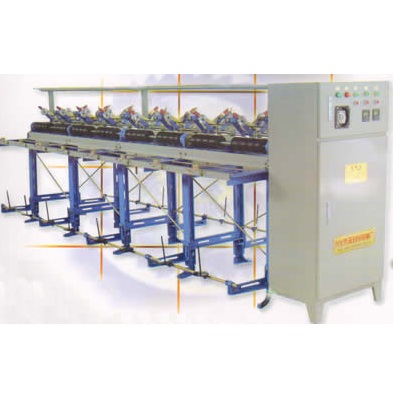

TS230, type 280 jumbo roll, drum machine, used in chemical fiber, cotton yarn, yarn, yarn, winding into a conical or cylindrical, for the next process, forming good, no phenomenon of edge collapse, jumbo roll can reduce the labor intensity of the next process, suitable for high speed production.
The main specifications
Type: double groove tube
Each spindle number: 8, 16, 32, 40, 48
Spindle pitch: 370-430 mm
Line speed: 300-400 M / min ( according to raw materials increase or decrease)
Yarn guide path: 185-245 mm
Drum rotation speed: 1580 RPM ( may be required to increase or decrease)
Cylinder size: 250 * 300 mm
Dimensions: width 1500 * 1500 * 2300 + per section 1850 mm
Transmission method: triangle belt drive drum shaft
In addition the machine can choose photoelectric automatic stop device, frequency conversion and speed control device is also suitable for hank variable yarn, pine cones after dyeing.
|
|
