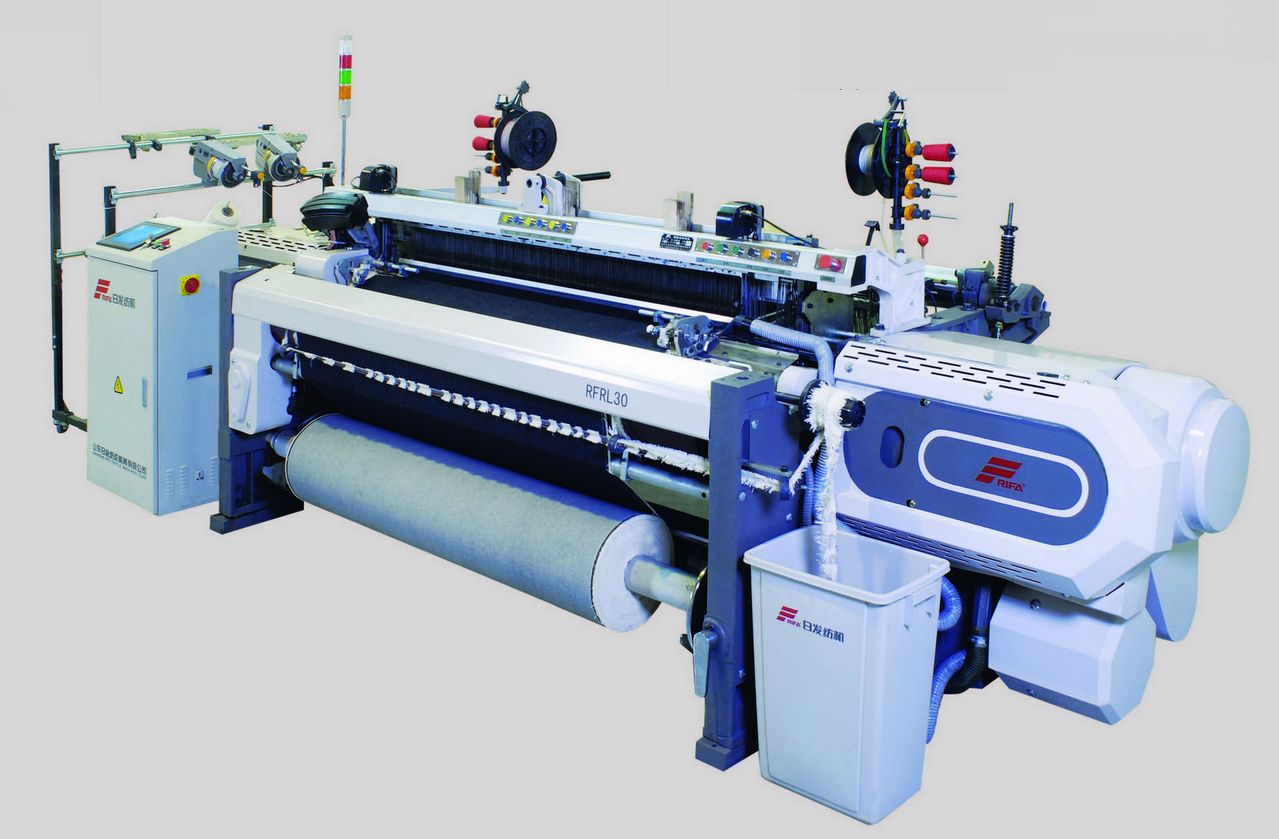

High-Speed Rapier Loom (RFRL30)
Post Date :2013-03-20
Expire Date :2013-01-07

View Basket
moq: 4sets, technical parameter: as following the detail, use for: Nature and man made fabrics, model: RFRL30

Detailed Trade Lead Description
RFRL30 is a high speed rapier loom with wide weaving versatility, design speed up to 700rpm, Filling insertion rate up to 1500m/min. Reed width range 170~380cm, it's suitable to weave various of fabrics such as wool fabric, cotton fabric, denim, corduroy, rayon, synthetic filament, silk, upholster fabric, industrial & percolation fabric, filter cloth, linen, glass fabric, etc.

RFRL30 Specification
Reed width(cm ): 170, 190, 200, 220, 230, 240, 260, 290, 320, 340, 360.
Width reduction: up to 80 cm
Yarn range: Cotton and man-made fiber yarn: 500tex(1.2Ne) ~ 5tex(120Ne)/Slub & worsted: 680tex(1.5Nm) ~10tex(100Nm)/Filament: 10dtex (9Td) ~ 1650dtex (1500Td)
Fabric weight: 20~850g/m 2
Designed speed: 700rpm
Working speed: 450~650rpm (rest on reed width)
Weft insertion rate: 1500 m/min (rest on reed width)
Weft selector: 4-8color electronic weft selector with linear motor/step motor
Weft feeder: FPD electronic accumulator
Weft cutter: mechanical.
Driving control: rated three-phase 7.5kw motor, Electro-magnetic brake-cloth unit.
Direct drive: fast reactive permanent super motor with low power consumption
Shedding motion: High-speed electronic dobby with max. 20 shafts/Electronic Jacquard.
Beat-up motion: Conjugated cams in two sides drive sley
Let-off motion: Continuous, electronically controlling let-off system.
Single beam/ Double beam
Warp beam diameter: ground 800mm / 1000mm
Cloth take-up: Continuous, electronically controlling take-up system.
Diameter of cloth roll: standard 600mm(on loom) 1200mm (outside loon)
Pick density: 2~200 picks/cm
Selvage formation: Normal or high speed electronic controlled.
Selvage cutter: Mechanical / Electronic
Temple: LH& RH individual temple.
Lubrication: Pressurized oil circulation system with continuous filtration & bath oil.
Stop motion:
Warp yarn: separate electric warp stop motions
Weft yarn: high-sensitivity piezoelectricity detector
Automatic stop motion for leno and false selvage yarn
Stop display: 4-colour multi-function indication lamps
Automatic: Orientation stop / slow motion for pick finding /warp tension adjustment etc
Controlling: functional CPU control system, can control, scout, auto diagnose, information showing.
Display: big LCD showing bidirectional communication, button operation, instant adjustment/ parameter setting, programmer making.
