Weaner flooring

Country of Origin:
Main Export Markets:

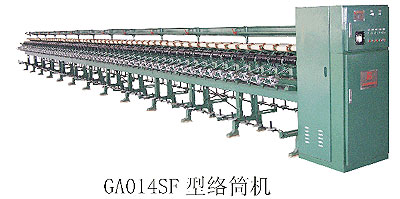

GA014SF Cone Winding Machine
Post Date :2008-04-11
Expire Date :2009-04-11

View Basket

Detailed Trade Lead Description
Main technical data:
-Model: Double-side chute barrel type
-Number of spindles of each set: 60, 80, 100 and 120 (with 100 as the standard number of spindles for each machine)
-Spindle gauge: 245mm
-Winding speed: 350, 400 meters/minute
-Grooved drum specification: Metal grooved drum or bakelite grooved drum is ofφ80mm with 2 circles of the same distance.
-Guide bar travel: 147mm
-Transverse mmonmentum of grooved drum: 2.2mm and 3.2mm.
-Traversing times of grooved drum: 14.2 times/minute.
-Bobbin: Adopt the bobbins of the following specifications 0°3° 30′ or manufacturing-to-order against offered sample.
-Forming size:The biggest one isΦ180mm in length.
-Density of cheese yarn on cones: 0.30-0.40g/cm3.
-Yarn-break auto-stop device: Each spindle has a set of feeler-lever type mechanical yarn-break auto-stop device for individual application.
-Tension device: Tension balancing device is set with total 10 kinds of tension spacers (weight balancing can be carried out according to technical requirements).
-Thread cleaning device:Yarn cleaning with blade is set.
-Pitch diameter of belt pulley: Φ150mm.
-Blank-pipe conveyer device: Belt conveyer devices are set at both sides of the machine to convey blank pipes from the head to the rear of vehicles.
-Holder for yarn inserting: It’s applicable to yarn supply of horizontal-type and pagoda-type cheese yarns on cones and cops.
-Folding-resist device:The contactless intermittent switch is folding resistant.
-Traversing gear: Idler pulley-type grooved-drum traversing gear is equipped to remove the hard edges of the drum.
-Cleaning device:Users could select GUO13 type upper-blowing traveling cleanser.
-External dimensions: 13759mm, 1122mm and 1615mm in length, width and height respectively
-Move mode:
Two sets of JFO2-31A-6 type electromotor, 1.8Kw, 1440 revolutions per minute, driving grooved-drum shaft with triangle belt.
One set of FW-11A-6 type electromotor, 0.37Kw, 960 revolutions per minute, stopping the eccentric cam with gear drive automatically, and having blank-pipe conveyer device and traversing gear at both sides.
-Triangle belt: A1800, 6 pieces
