Weaner flooring

Country of Origin:
Main Export Markets:

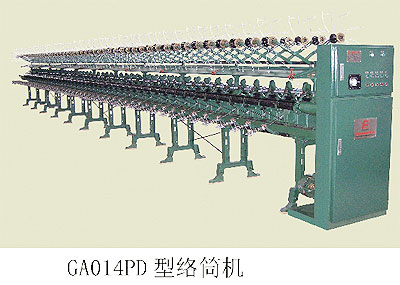

GA014PD Cone Winding Machine
Post Date :2008-04-11
Expire Date :2009-04-11

View Basket

Detailed Trade Lead Description
Main technical data:
-Model: Double-side chute barrel type
-Number of spindles of each set: 60, 80, 100 and 120 (with 100 as the standard number of spindles for each machine)
-Spindle gauge: 254mm
-Guide bar travel: 152mm
-Winding speed: 140, 160 meters/minute
-Bobbin: wooden pipe′s obliquity is 6°, Φ25/Φ62×177mm
Paper pipe′s obliquity is 3° 30′obliquity is 6°
-Forming size:Φ200 (big head) ×152mm (length)
-Grooved drum specification: The bakelite drum or metal grooved drum with a diameter of Φ82.5mm and 2.5 circles of folding-resist grooved drums are provided for selection of users;
-Yarn-break auto-stop device: Each spindle has an independent set of auto-stop device.
-Tension device: Thread guard, thread cleaner and thread guide device form a whole set (jockey pulley has three different weights, namely 18.2g, 7.4g and 3.5g).
-Thread cleaning device: Folding-resist device: 1. Electronic contactless intermittent switch is set inside the electric switch box to make the rotating speed of the electromotor welter at its turning on and off in rotation. The intermittent time can be adjusted according to the speed of yarn counts. Also, electronic display is set in this device.
-External dimensions: 13600mm, 1150mm and 1523mm in length, width and height respectively
-Move mode:
Main electromotor: 2 sets, JFO2-31-6 type, 1.1Kw, 960 revolutions per minute, driving grooved-drum shaft with triangle belt.
Auxiliary electromotor: 1 set, FW-11A-6 type, 0.37Kw, 960 revolutions per minute, driving yarn-break to stop automatically.
