Application:

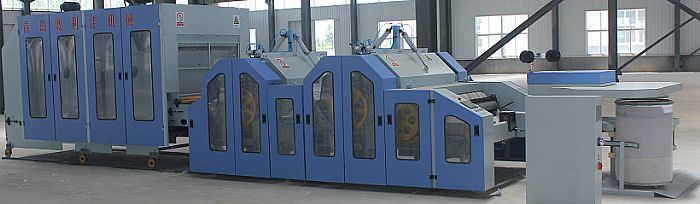

This
machine is applicable to open,card and blend chemcial fibers and mixed
fibers,condense them into wool tops of certain specifications ,and then coil
them into sliver can regularly for the following process.
Main
technical specification:
1、Machine
width :1500mm
2、Applicable
material； Chemical
fiber and its blendings, with the length
25-127mmand the finess is
0.8-30D
3、Feeding
form :single-box volumetric type
automatic continuous feeding with photoelectric control
4、Delivery
tops weight 7-20g/m
5、Total
draft multiple 32-140
6、Max.
delivery speed 200m/min
7、Max.
productive capacity 240kg/h per set
8、Cylinder
working dia. Φ770mm
9、Cylinder
speed 400 RPM(frequency control)
10、Licker-in
working dia. Φ250mm
11、Licker-in
speed :600 RPM(frequency control)
12、Doffer
working dia. Φ650mm
13、Doffer
speed: 10-75RPM (frequency control)
14、air
consumption for dust suction(continuous):2200m3/h per set
15、Coil
type Manual type 3-position or
4-position automatic can changer
16、Applicable
sliver can specification： Φ600×900，Φ400×1100（optional）
17、Total
power 12.8kw
18、Floor
face Width 1.5m 11000*2560
19、Machine
weight(L*W) 11000kg
|
