| YJ-II series flexible rapier loom |
| Post Date :2013-03-28 |
| Expire Date :2011-08-18 |
 View Basket |
| use for: weave all kinds of yarns and fabrics., moq: 1 SET, model: YJ-II |
| Detailed Trade Lead Description |

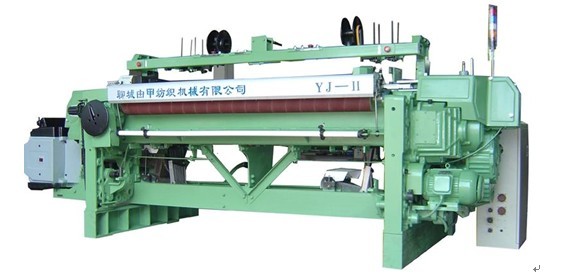

| YJ-Ⅱseries flexible rapier loom is a new type of shuttleless loom. This rapier loom has many characterristics such as high-performance, compact conformation, easy operation, convenience adjustment of fabric, the high degree of automation, the wide range of weaving. This rapier loom is suitable to weave all kinds of yarns and fabrics.
Yarn: weaving various natrual fibers, as cotton, hair, silk, numb, various artificial and synthetic fiber, yarn count from Nm2 to Td15.
Fabric: weaving all kinds of fabric in range of 20 g/㎡-800 g/㎡ applying to various kind fabrics such as drap de berry, spining wool fabrics, flax, jute, color-weave, denim, real silk and cotton weaving chemical fiber and industrial cloth.
Technical data:
Nominal reel width 1.9, 2.1, 2.3, 2.8, 3.2, 3.6, 3.8, 4.2, 4.6 m
Speed 312r/min~430r/min
Filling rate Up to 1000m/min-1200m/min
Power Overall electrical power consumption<4KW
Noise <87dbA
Control Broken filling automatic stop, broken warp auto matic stop
Beam Outside diameter 800mm-1000mm standard single and double beam
Cloth roller Max. rolling cloth diameter may reach 550mm
|
|
|
