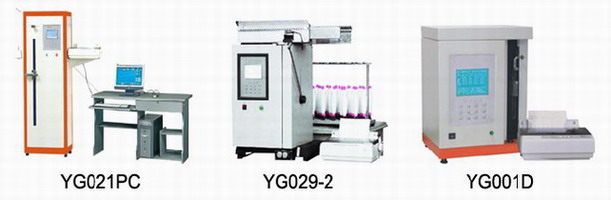

YG021PC Electronic Single End Yarn Strength Tester
INTRODUCTION
Single End Yarn Strength Tester. To determine the breaking load and extension of single yarns up to 5000 centi-grams force. Electronically operated with mechanical action, provided with scales 0-500cg force and 0-5000cg force, extension scale graduated in mm and percentage of standard test length (500mm) .
APPLICATIONS
ASTM D2256
SPECIFICITION
( 1) Load Range: 0-50000cN
( 2) Load Resolution: 1 / 50000
( 3) Load Accuracy: (<=) ( + -) 0. 05% F-S
( 4) Accuracy: 1% -100% Capacity of Load Cell ( + -) 0. 5% 0. 5% -1% Capacity of Load Cell ( + -) 1. 0%
( 5) Frequency of data sampling: (>=) 800Hz
( 6) Speed Range: 10-1200mm / min
( 7) Return Speed: 10-1200mm / min
( 8) Elongation Resolution: 0. 01mm
( 9) Max Vertical test space: 900mm
( 10) Available Length of sample: 0-500mm
( 11) Presetting Force: 0-150cN
( 12) DATA Memory: (>=) 4000 tests
( 13) Instrument Size: 670 x 450 x 1660 mm (L x W x H)
( 14) Instrument Weight: 85kg
FEATURES
( 1) Data Sampling Frequency is More than 800HZ, ease to catch peak value, most precisely indicate property of textile material;
( 2) Sharp blue LCD Panel, the operator simply selects the required test module and test standard;
( 3) A graphical icon on each button clearly illustrates its current function. This greatly simplifies the screen by only showing commands relevant to the current task;
( 4) Use Mitsubishi 16bit MCU, Mitsubishi 16bit A / D converter, more excellent anti-jamming, more rapid data transfer;
( 5) Clock auto generating, and be visual consistently;
( 6) Real time display of on-going test data (Like mean square value, average, max, min, etc) ;
( 7) Able to preset tensile force;
( 8) Force unit: N, Kgf, 1b, in, cN can be switched freely;
( 9) Report, diagram are handled by computer and print out from printer;
( 10) Calibration file to calibrate the unit and indicate with figure;
( 11) Operator can use LCD control panel to operate the unit and print testing data without PC (bidirectional controlling) ;
( 12) Data can be sent to excel and analysed by computer;
( 13) Overlay display of data curve possible.
STANDARD CONFIG
( 1) Printer, PC;
( 2) Software;
( 3) Sharp blue LCD controlling panel;
( 4) Precision DC servo (stepper) motor and driver. |
|
|
| |
