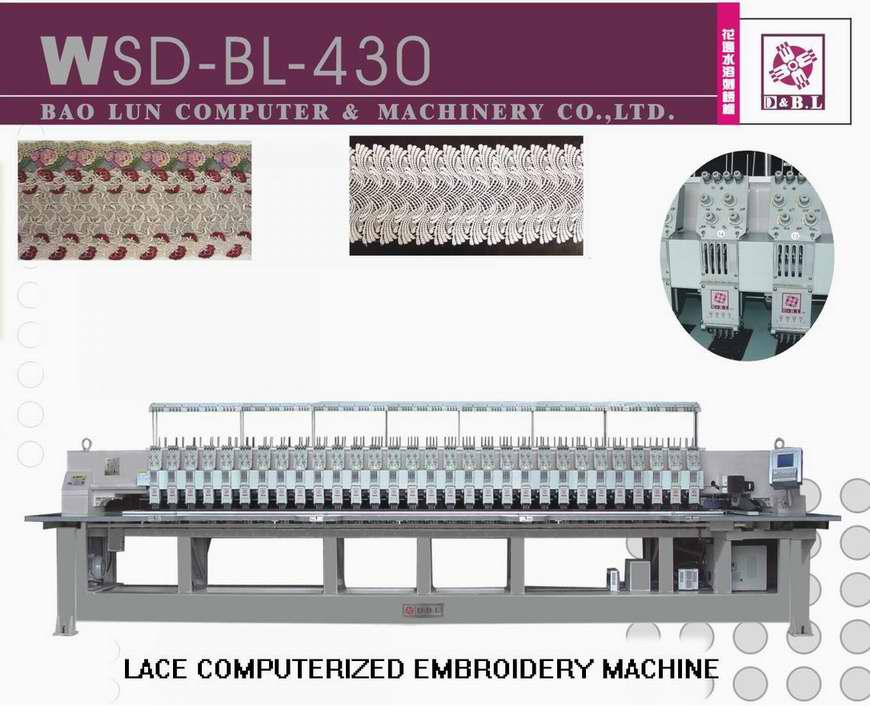

| Lace Computerized Embroidery Machine(BL-430P)
Machine models and specifications
Model Heads Needles Head distance(mm) Embroidery Area(mm) Dimension(mm)(LxWxH)
BL-430P 30 4 165 165×750/500 6600×1900×1600
BL-430P 30 4 162 162×750/500 6540×1900×1600
For above models,if adopt wooden package,the length and width of the package size increase 300mm respectively based on machine size.
Technology Parameter
Name Lace Computerized Embroidery Machine
Application Range Applied to muslin,lace,piece goods with excellent performance.
Electric Controlling system Dahao 258 Computerized controlling system,5 inches color LCD monitor
Memory Capacity 1000,000 stitches,99 patterns.
Memory Format Read files in Tajima(DST) ,Barudan,ZSK,Binary system,Ternary system format
Imput USB port and 3.5 inches floppy disk that both can be compatible.
Trimming system Automatic trimming device
Stitches length Ternary system:0.1~12.1mm,Binary system:0.1~12.7mm
Rotary Hook Japanese original bobbin,bobbin case.
Driving Reinforced linear guide rail driving design
Head Digitalized head device with large guide plate saving adjusting to be horizontal manually.
Color changing Automatic color changing device
Sewing Speed 250~850rpms
Motor Main shaft:Toshiba induction motor 1.5KW
X,Y stepping motor 110(2pcs)
Power Consumption 2.0KW 50～60HZ
Voltage Three phase380V,Single phase220V,Single phase110V for options
|
|
|
| |
